Lake Aero Styling and Repair (LASAR) manufactures modification kits that enhance the performance and functionality of Mooney airplanes. LASAR kits are described below. If you want to buy parts, complete our parts order form.







LASAR STC’d Kits

Flap Gap Seals (M20B-M20G)

No. 100
Speed Increase
2.5 mph
Parts Hardware & STC
$325.00
Labor Hours
12+
Description
Channels & seals which fill the cavity in the flap well. Increases not only speed but also the rate of climb.

Aileron Lower Gap Seals (M20B-M20K)

No. 101
Speed Increase
1.0 mph
Parts Hardware & STC
$180.00
Labor Hours
4+
Description
Extends the bottom wing skins rearward to close the gap throughout the travel range of the ailerons.

Flap Hinge Covers (M20B-M20J)

No. 102
Speed Increase
1.0 mph
Parts Hardware & STC
$1,115.00
Labor Hours
5
Description
Streamlines the flap hinges with 8 fairings.

Flap Hinge Covers-Inboard Only (2 Fairings)

No. 102A
Speed Increase
0.5 mph
Parts Hardware & STC
$335.00
Labor Hours
4+
Description
When installed with Kit #111B, it closes the gap between the flap and the fuselage.

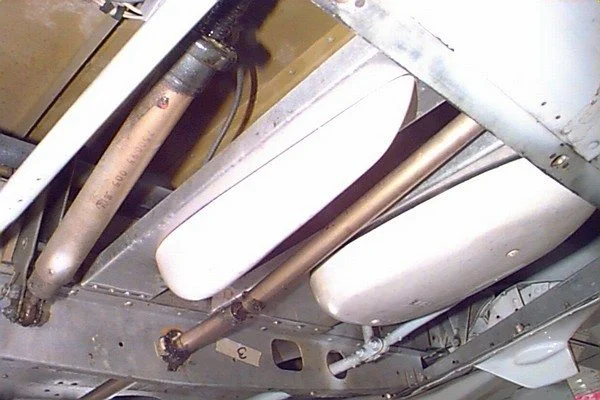

Wheel Well Liner (M20B – M20K)

No. 103A
Speed Increase
1.0 mph
Parts Hardware & STC
$190.00
Labor Hours
4+
Description
The liner reduces the turbulent air flow in the wheel well, and provides a barrier for mud, debris & mice.

Brake Wheel Cylinder Rotation (M20B – M20K)

No. 103B
Speed Increase
1.0 mph
Parts Hardware & STC
$45.00
Labor Hours
4+
Description
Reverses the brake calipers out of the slip stream when the gear is retracted.

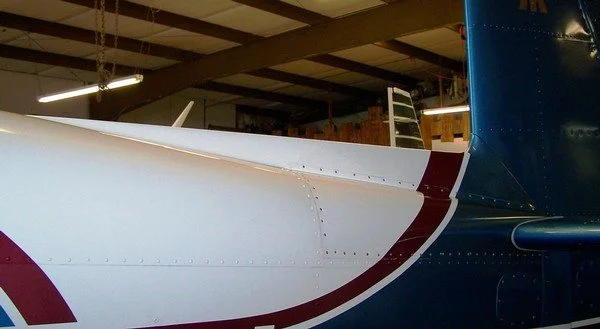

Dorsal Fin Vertical Seal (M20B – M20G)

No. 104
Speed Increase
2.0 mph
Parts Hardware & STC
$490.00
Labor Hours
4+
Description
A two-part assembly which can be added to the aircraft or replace the existing dorsal fin. The skirt, attached to the vertical stabilizer, is contoured to slide into the dorsal fin and maintains a constant seal throughout the trim travel range of the moveable tail.

Tail Root Horizontal Fairing (M20B – M20J)

No. 105
Speed Increase
2.0 mph
Parts Hardware & STC
$250.00
Labor Hours
5+
Description
Attached to the tailcone, it better contours the rounded tailcone by providing a flat uniform surface to narrow the gap with the horizontal stabilizer in all positions.

Wing Tip Fairings (M20B – M20J) 107FG (M20F & M20G)

No. 107
Speed Increase
1.0 mph
Parts Hardware & STC
$3,490.00
Labor Hours
6+
Description
Incorporates late style wing tips without having to replace the ailerons.

Wing Tip Fairings With Nav. Antennas (M20B – M20J)

No. 107A
Speed Increase
2.0 mph
Parts Hardware & STC
$3,690.00
Labor Hours
10+
Description
Provides greater VOR reception and reduces drag from fin mounted antennas.

Wing Root Leading Edge Fairing (M20B – M20J)

No. 108
Speed Increase
1.5 mph
Parts Hardware & STC
$540.00
Labor Hours
8+
Description
Enhances a smooth air flow at the wing/fuselage intersection. Reduces stall speed by approximately 2 mph and improves handling characteristics.

Inboard Flap Fillet Fairing

No. 111
Speed Increase
.5 mph
Parts Hardware & STC
$240.00
Labor Hours
8
Description
Extends the portion of the flap into the wing fillet fairing at the trailing edge.

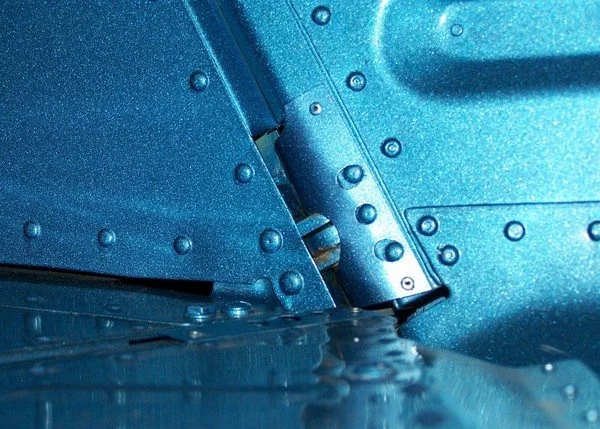

Rudder & Elevator Hinge Covers (M20A – M20K)

No. 112
Speed Increase
2.0 mph
Parts Hardware & STC
$220.00
Labor Hours
3+
Description
Closes gaps at each hinge. Prevents air flow from spilling from one side of the control surface to the other, while providing a net gain in airspeed.

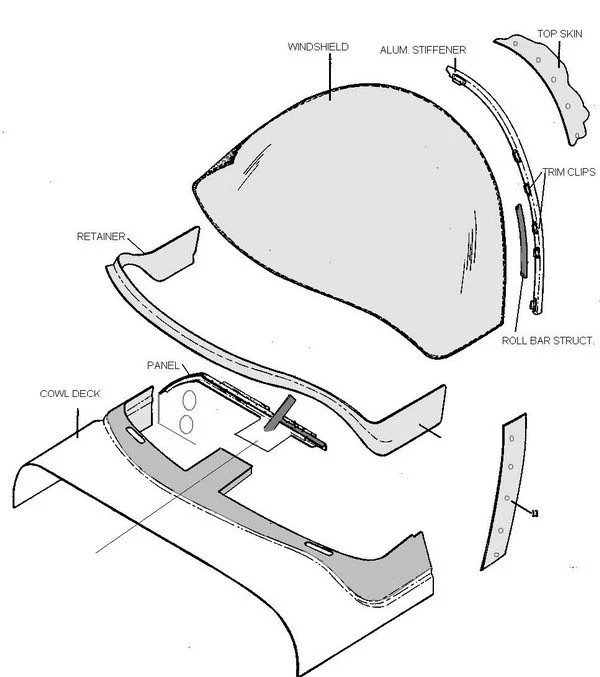

201 Windshield Retrofit (M20C – M20G)

No. 119
Speed Increase
3.0 mph
Parts Hardware & STC
$2,595.00
Labor Hours
50+
Description
Installs a 201 style windshield to the older models. improves visibility, increases speed and reduces cabin noise. Kit comes complete with 1/4 inch green tint windshield (other tints and thickness are available), cowl deck, retainer, defroster vents, glareshield, upper windshield molding, and installation kit.

One Piece Windshield (PRE 1967) (M20 – M20F)

No. 120
Speed Increase
0
Parts Hardware & STC
$590.00
Labor Hours
15+
Description
Replaces the existing two piece windshield with a 1/4 inch thick single piece green tinted windshield. (Other tint color available) Improves strength and sound proofing effects. Kit includes compass mounting parts.

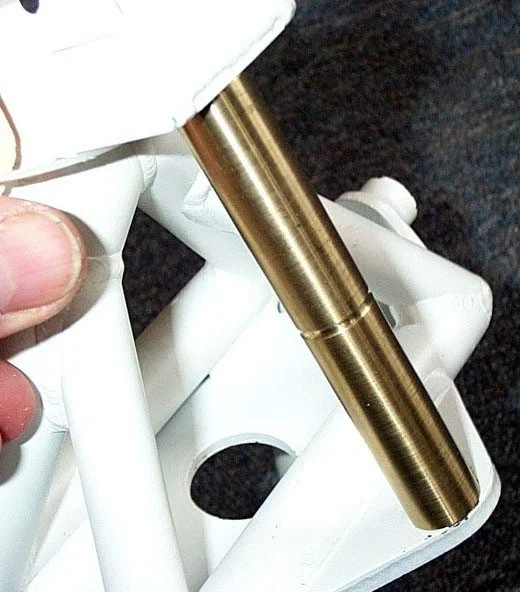

Oversize Bushing- Nose Gear pivot -NEW Alum. Bronz

No. 122A
Speed Increase
0
Parts Hardware & STC
$190.00
Labor Hours
2+
Description
Bushing can be purchased with .005 oversize reamer to restore new tolerances. New tough material is expected to reduce wear, common in this area. NAS bolt hwd included.

Steering Horn Upgrade Assembly

No. 122B
Speed Increase
0
Parts Hardware & STC
$850.00
Labor Hours
3
Description
Incorporates the new style, heavy duty steering horn which has fewer moving parts, requiring less maintenance.(Sold exchange Steering horn is LASAR Rebuilt with new Alum. Nickel Bronze bushing and heat treated “T” Shaft and 3/8″ pivot bushing mod.

Oil Cooler Relocation (M20E – M20F) (1967 & up )

No. 126
Speed Increase
1.0 mph
Parts Hardware & STC
$550.00
Labor Hours
10+
Description
Moves the oil cooler from the lower cowl to a position behind the #4 cylinder. Provides better air distribution for both the cylinders and the oil cooler, while streamlining the lower cowl. Fits 200 hp models with open baffle system.

200 HP Conversion M20C-M20D-M20G-M20E&F (STC only)

No. 127
Speed Increase
4.0 mph
Parts Hardware & STC
$750.00
Labor Hours
80+
Description
Retrofits the 200 hp Lycoming IO-360-XXX engine to the M20 C, D, & G model 180 HP Mooney. This STC also allows other 200 HP Lycoming Engine model options for the M20E & F, including the IO-360A1B6, as well as Hartzell and McCauley propeller options. Kit contains instructions & STC only. New OEM engines available.

Smooth Belly (M20F, G, J & K)

No. 129A
Speed Increase
6.0 mph*
Parts Hardware & STC
$5,850.00
Labor Hours
70+
Description
Replacement of the multi-segmented belly skins with a smooth aerodynamically contoured one-piece fairing. Eliminates needless hours of removing screws and can conceal various antennas. *This can account for up to 6 MPH by burying some typical antennas.

Smooth Belly (M20C & M20E)

No. 129B
Speed Increase
3.0 mph
Parts Hardware & STC
$2,350.00
Labor Hours
35+
Description
Replacement of the multi-segmented belly skins with a smooth aerodynamically contoured one-piece fairing. Eliminates needless hours of removing screws and can conceal various antennas, adding speed.

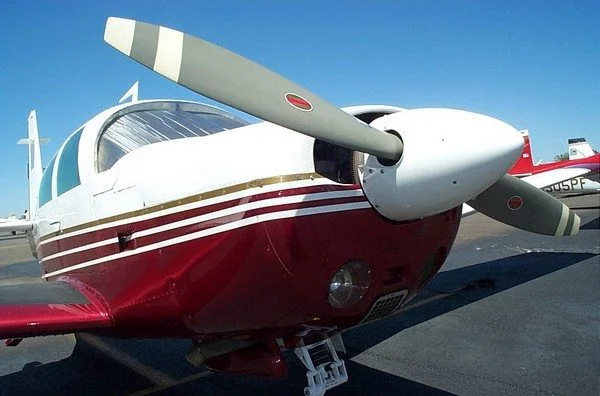

Cowl Enclosure Fairing (M20A – M20G)

No. 131
Speed Increase
5.0 mph
Parts Hardware & STC
$490.00
Labor Hours
5+
Description
Especially designed to reduce the larger air inlet on the older models to provide efficient engine cooling, airspeed gain and reduce cabin noise.

LASAR WISER VISORS (Pair) out of stock

No. 146
Speed Increase
0
Parts Hardware & STC
$350.00
Labor Hours
1+
Description
Fully articulating Sun Visors for the Mooney. PMA replacement for most models and will fit all others with adapter mount. These visors can be positioned everywhere you want them. Sorry we are currently out of stock, but will take your order for the next production run.

Steering Horn Assembly (M20C – M20S)

No. 148
Speed Increase
0
Parts Hardware & STC
$1,075.00
Labor Hours
3+
Description

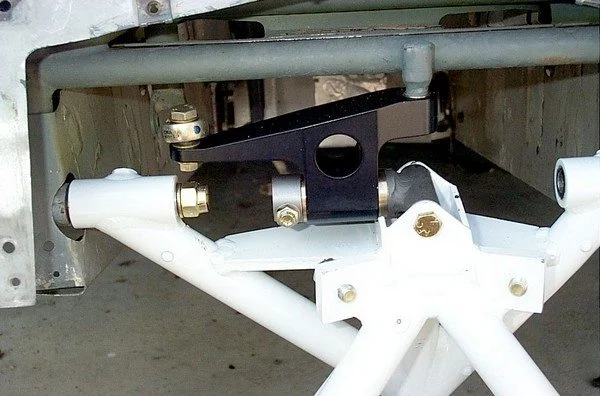

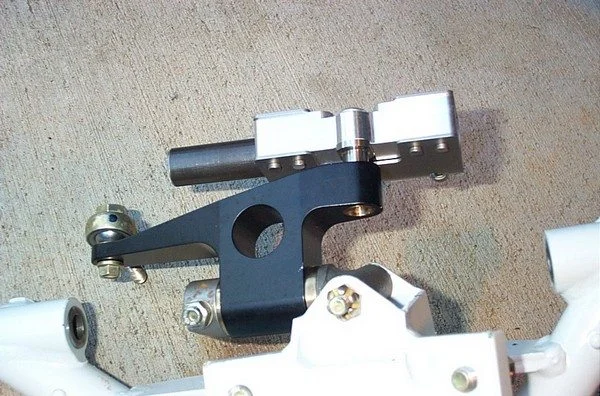

New PMA LASAR Steering Horn which has fewer moving parts, requiring less maintenance, features life time aluminum/nickel/ bronze bushings, heat-treated T-Shaft and a new clamp-on pivot stud for positive alignment. Ask about our Rebuilt steering horns

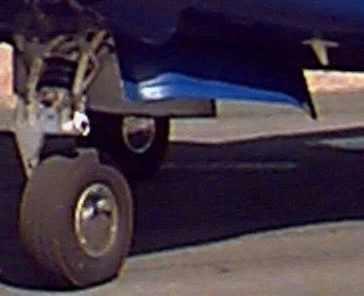

Wheel Covers Polished Stainless Steel

No. 149
Speed Increase
0
Parts Hardware & STC
$150.00
Labor Hours
1+
Description

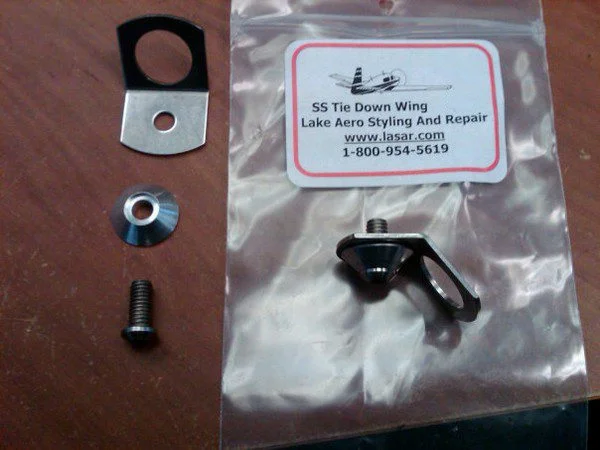

Attractive Hub Caps for the Nose gear and Main gear (set of 4) Includes mounting hardware for the 3 hole predrilled wheels. Kit also includes a Tail skid and Wing Tie downs/ Jack pads. The strong Tie downs are a combination ring and cone for jacking the airplane. ($45. pair) Parts may be purchased indiovidually.

Latch Casting Socket

No. 152
Speed Increase
0
Parts Hardware & STC
$390.00
Labor Hours
2+
Description
PMA Replacement Down lock Socket for all manual gear Mooneys. P/N LA560006-003 Replacement for 560006-003 and 560006-005.

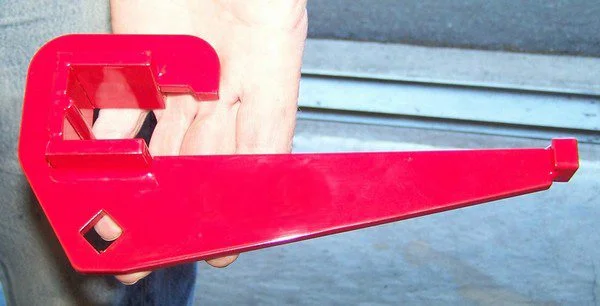

Gear Torque Tools–Not a Mod.

No. GSE
Speed Increase
0
Parts Hardware & STC
$290.00/$0.00
Labor Hours
0
Description
Gear Torque Tools for setting proper torque values to gear down. Main Landing Gear Tool $155, Nose Gear Tool $135 ( for Manual retraction Systems)— NEW –Powder Coated
